Kia Cee'd: Ignition Switch Assembly / Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the driver crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. |
Remove the steering column upper and lower shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
|
| 4. |
Remove the wiper switch.
(Refer to Multifunction Switch - "Multifunction Switch")
|
| 5. |
Remove the ignition switch after disconnecting the ignition switch 6P
connector (A).
|
| 6. |
Remove the key warning/immobilizer connector (A).
|
| 7. |
After loosening the screw, remove the key warning switch and key Illumination
(B).
|
| 8. |
Pushing lock pin (A) with key ACC.
|
| 9. |
Remove the key lock cylinder (A).
B : Key warning switch and key illumination
C : Ignition switch connector
|
| Installation |
| 1. |
Install the key lock cylinder.
|
| 2. |
Install the key warning switch and key Illumination.
|
| 3. |
Install the key warning/immobilizer connector.
|
| 4. |
Connect the ignition switch connector after Install the ignition switch.
|
| 5. |
Install the wiper switch.
|
| 6. |
Install the steering column shrouds.
|
| 7. |
Install the driver crash pad lower panel.
|
| Inspection |
| 1. |
Disconnect the ignition switch connector (B) and key warning switch
connector (A) from the steering column.
|
| 2. |

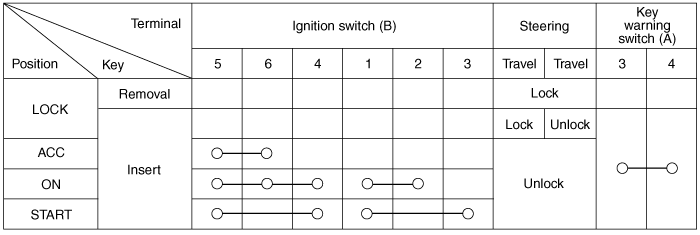

Check for continuity between the terminals.
|
| 3. |
If continuity is not specified, replace the switch.
|
