Kia Cee'd: Floor Carpet / Repair procedures

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Floor Carpet / Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
4.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
5.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
6.
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
7.

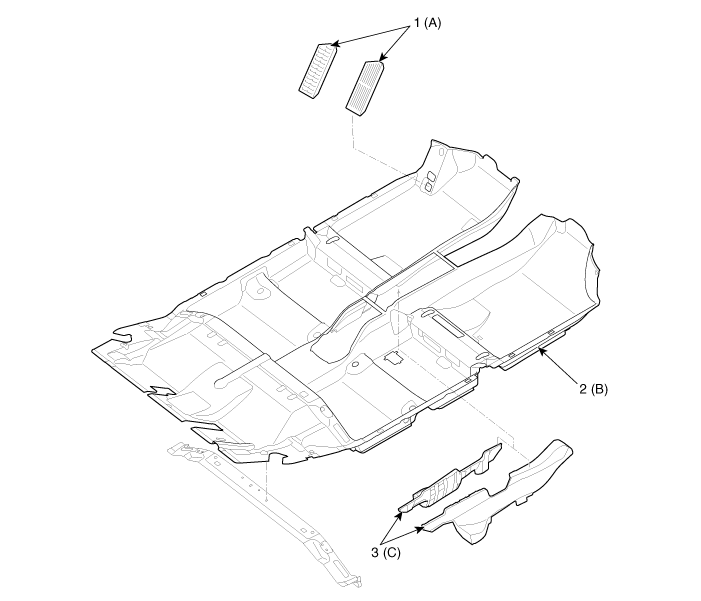

Remove the foot rest (A).
8.
Remove the floor carpet assembly (B).
9.
Remove the tunnel pad (C).
10.
Install in the reverse order of removal.

•
Replace any damaged clips.


1. Foot rest
2. Floor carpet assembly
3. Tunnel pad
