Kia Cee'd: Trunk Trim / Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the luggage floor net (A).
|
| 2. |
Remove the luggage floor box cover (B).
|
| 3. |
After loosening the mounting screws, then remove the luggage floor box
trim (C).
|
| 4. |
Install in the reverse order of removal.
| •
|
Replace any damaged clips.
|
|

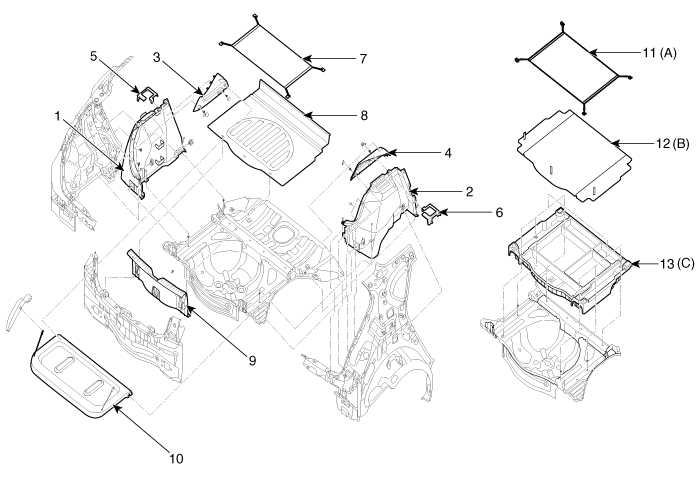

1. Luggage side trim
[LH]
2. Luggage side trim [RH]
3. Rear shelf side trim [LH]
4. Rear shelf side trim [RH]
5. Rear seat belt bracket [LH]
|
6. Rear seat belt bracket
[RH]
7. Luggage net
8. Luggage covering board
9. Rear transverse trim
10. Covering shelf
|
11. Luggage floor net
12. Luggage floor box cover
13. Luggage floor box trim
|
|
[3Door]
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
| • |
Put on gloves to protect your hands.
|
|
| 1. |
Remove the luggage floor net (A).
|
| 2. |
Remove the luggage floor box cover (B).
|
| 3. |
After loosening the mounting screws, then remove the luggage floor box
trim (C).
|
| 4. |
Installation is the reverse of removal.
| •
|
Replace any damaged clips.
|
|

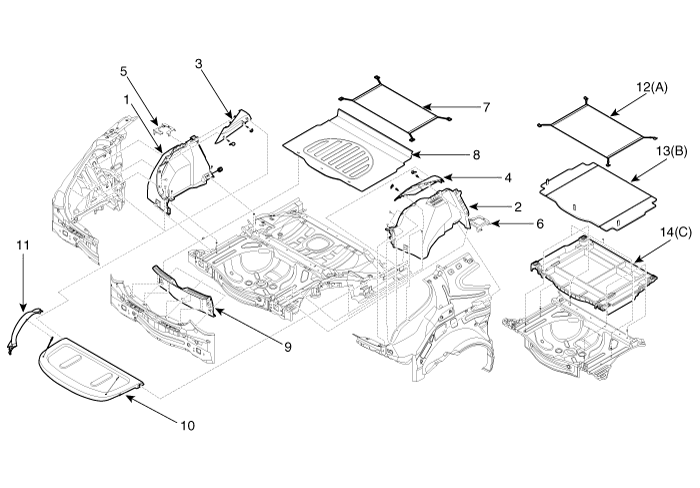

1. Luggage side trim
[LH]
2. Luggage side trim [RH]
3. Rear shelf side trim [LH]
4. Rear shelf side trim [RH]
5. Rear seat belt bracket [LH]
6. Rear seat belt bracket [RH]
7. Luggage net
|
8. Luggage covering board
9. Rear transverse trim
10. Covering shelf
11. Tail gate side trim
12. Luggage floor net
13. Luggage floor box cover
14. Luggage floor box trim
|
|
