Kia Cee'd: Dual Clutch Transmission(DCT) System / Repair procedures
| Dual Clutch Transmission(DCT)
Learning |
| 1. |
Learning overview and purpose
| – |
Checks gear shift precision and normal clutch operation in the
finished car to ensure accurate Dual Clutch Transmission (DCT)
control by the Transmission Control Module(TCM).
|
|
| 2. |
Conditions that require leaning
| – |
This comprises 3 steps
Setp 1-Gear position learning
Step 2-Clutch characteristics adjustment
Step 3-Identification of gear shift timing
|
| – |
Perform leaning when replaceing dual clutch assembly, repair
DCT Assembly- Step 1, 2, 3
|
| – |
Perform leaning when replaceing DCT Assembly, TCM, TCM Reprogram,
sensor&gear actuator- Step 1, 3
|
|

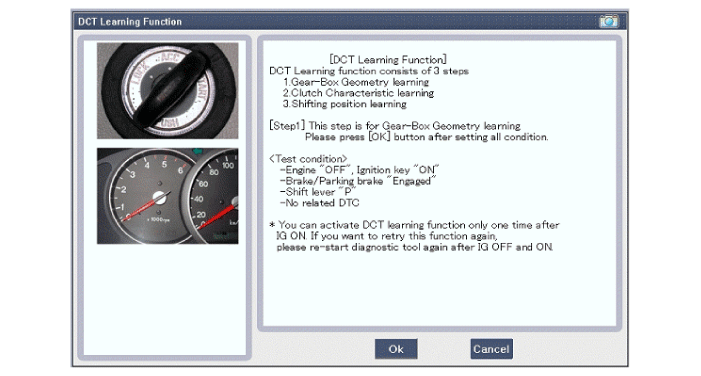

| DCT Manual Learning - Step 1 |

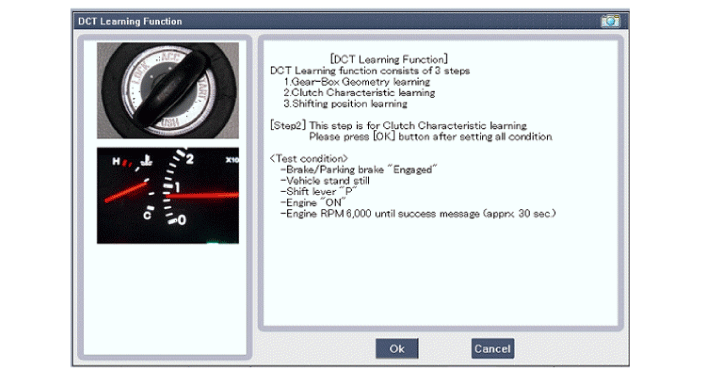

| DCT Manual Learning - Step 2 |

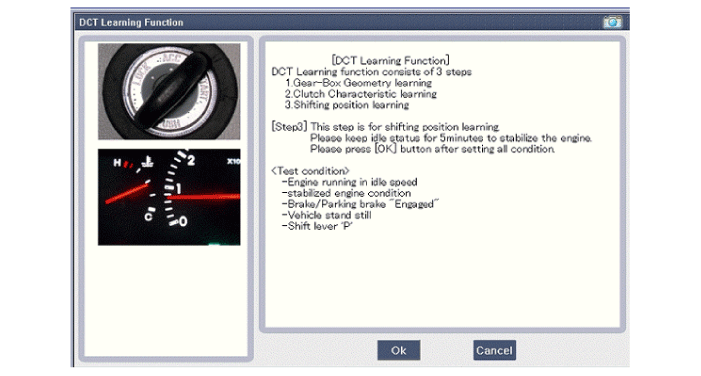

| DCT Manual Learning - Step 3 |
