Kia Cee'd: Fuses and Relays / Relay Box (Engine Compartment) Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / Relay Box (Engine Compartment) Repair procedures

Inspection

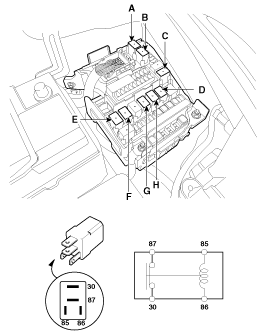

Power Relay Test (Type A)

–	Do not use pliers.

–	Pliers will damage the relays, which could cause the engine to stall or not start.

–	Carefully remove the relay using the relay puller.

Check for continuity between the terminals.

A : C/Fan(Low) relay
B : C/Fan(High) relay
C : Blower relay
D : SSB2(ACC) relay

E : Rear defogger relay
F : SSB4(IG2) relay
G : SSB3(IG1) relay
H : Start relay

1.	There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.

2.	There should be no continuity between the No.30 and No.87 terminals when power is disconnected.

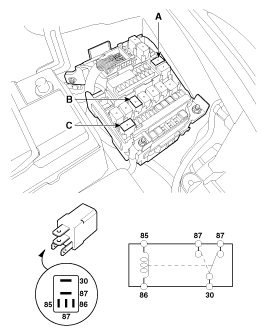

Power Relay Test (Type B)

Check for continuity between the terminals.

A : ESS relay

B : Wiper relay

C : HAC relay

1.	There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.

2.	There should be continuity between the No.30 and No.87 terminals when power is disconnected.

Power Relay Test (Type C)

Check for continuity between the terminals.

A : PTC(GSL)/Fuel heater relay(DSL)

B : Glow plug relay

C : PTC3 relay

D : PTC2 relay

E : PTC1 relay

1.	There should be continuity between the No.30, 87a and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.

2.	There should be no continuity between the No.30, 87a and No.87 terminals when power is disconnected.

Replacement of EMS box

1.	Disconnect the negative(-) battery terminal.

2.	Push 3 hooks in the engine room relay box out to the arrow direction and put up the EMS box assembly(A).

3.	Disconnect the connector and remove the EMS box assembly(A).

Fuse Inspection

1.	Be sure there is no play in the fuse holders, and that the fuses are held securely.

2.	Are the fuse capacities for each circuit correct?

3.	Are there any blown fuses? If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.

Multi Fuse

Multi Fuse is for optimizing the engine room package.

–	Multi fuse(A) is needed to replace entirely when there is damage to only one fuse.

–	When replace the multi fuse, refer to the "Engine compartment - component location" diagram exactly.

–	Use the multi fuse capacities for each circuit correctly.
