Kia Cee'd: Wipers and washers / Rear window wiper and washer switch

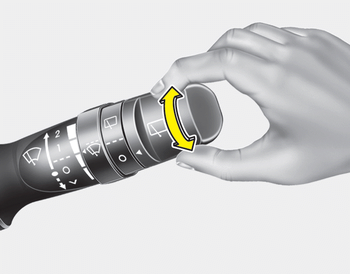

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever. Turn the switch to desired position to operate the rear wiper and washer.
- Normal wiper operation
--- - Intermittent wipe
O - Wiper is not in operation

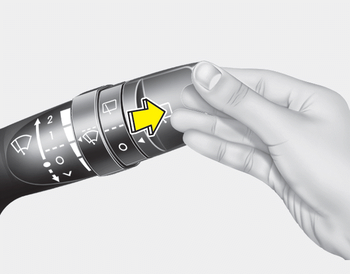

Push the lever away from you to spray rear washer fluid and to run the rear wipers 1~3 cycles. The spray and wiper operation will continue until you release the lever.
Headlight washer
If your vehicle is equipped with the headlight
washer it will operate at the same
time when you operate the windshield
washer. However, if this function is operated
once, the headlight washer ...
Interior light
CAUTION
Do not use the interior lights for
extended periods when the engine
is not running.
It may cause battery discharge.
WARNING
Do not use the interior lights when
driving in the dark. ...
