Kia Cee'd: Defroster / Rear window defroster

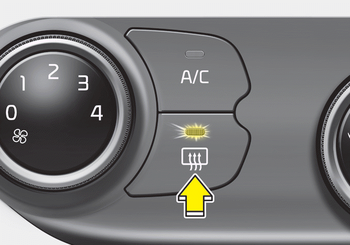

■ Manual climate control

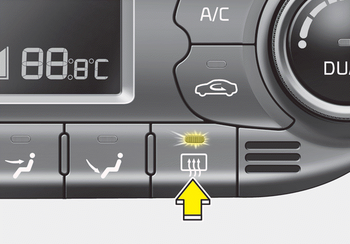

■ Automatic climate control
The defroster heats the window to remove frost, fog and thin ice from the interior and exterior of the rear window, while engine is running.
- To activate the rear window defroster, press the rear window defroster button located in the center facia switch panel. The indicator on the rear window defroster button illuminates when the defroster is ON.
- To turn off the defroster, press the rear window defroster button again.
✽ NOTICE
- If there is heavy accumulation of snow on the rear window, brush it off before operating the rear defroster.
- The rear window defroster automatically turns off after approximately 20 minutes or when the ignition switch is turned off.
Outside mirror defroster
The outside mirror defroster will operate at the same time you turn on the rear window defroster.
Front wiper deicer
The front wiper deicer will operate at the same time you turn on the rear window defroster.
Defroster
CAUTION
To prevent damage to the conductors
bonded to the inside surface of
the rear window, never use sharp
instruments or window cleaners
containing abrasives to clean the
window.
✽ NO ...
Manual climate control system
1. Fan speed control knob
2. Air conditioning button
3. Rear window defroster button
4. Mode selection knob
5. Air intake control button
6. Temperature control knob
CAUTION
Operating the blow ...
