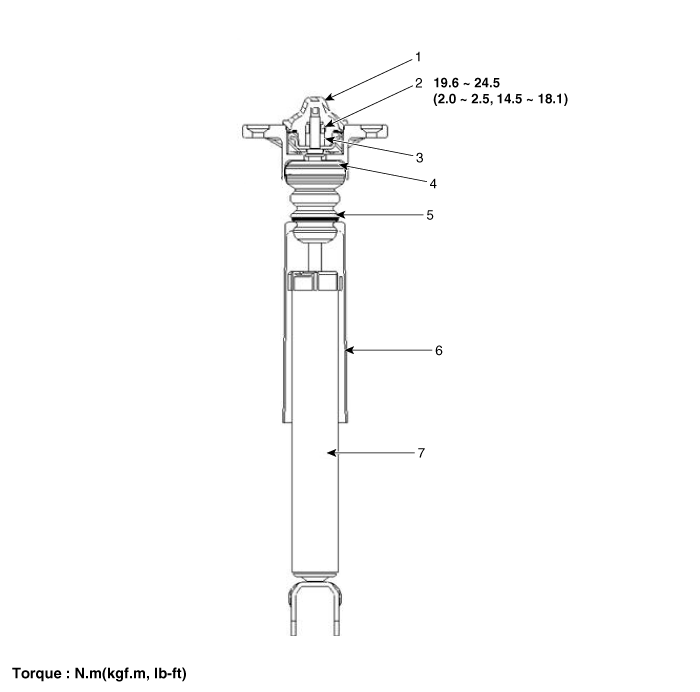

Components


1. Rear insulator cover
2. Locking nut
3. Plpe
4. Rear bracket assembly
5. Bumper rubber
6. Protector
7. Rear shock absorber assembly



Components and components location
Components Location   1. Rear shock absorber 2. Rear trailing arm 3. Rear upper arm 4. Rear stabilizer bar 5. Rear lower arm 6. Rear assist arm ...

Rear Shock Absorber Repair procedures
Replacement 1. Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel a ...
