Kia Cee'd: Interior Trim / Rear Pillar Trim Repair procedures

Replacement
[5Door]

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the rear wheel house trim.
(Refer to Interior Trim - "Rear Wheel House Trim")
2.

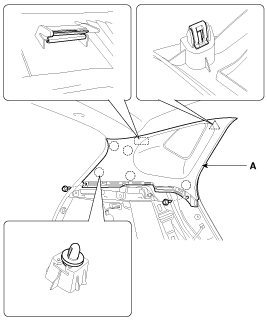

After loosening the mounting bolts, then remove the rear pillar trim (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.
[3Door]

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.
1.
Remove the rear inner outer trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
After loosening the mounting bolts, then remove the rear pillar trim (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.
Rear Pillar Trim Components and components location
Component Location [5Door]   1. Rear pillar trim [3Door]   1. Rear pillar trim ...
