Kia Cee'd: Rear Glass Defogger / Rear Glass Defogger Switch Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Rear Glass Defogger / Rear Glass Defogger Switch Repair procedures

Inspection
1.
The rear glass defogger switch inputs can be checked using the GDS.
2.
To check the input value of rear glass defogger switch, select option "Body Control Module".
3.

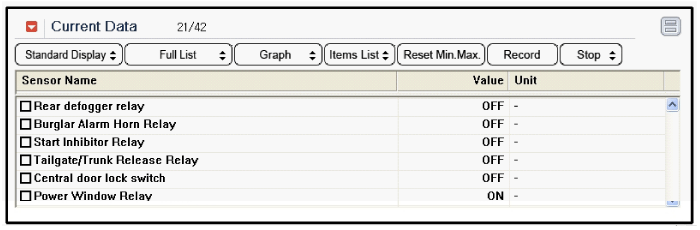

To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of smart junction box.

4.

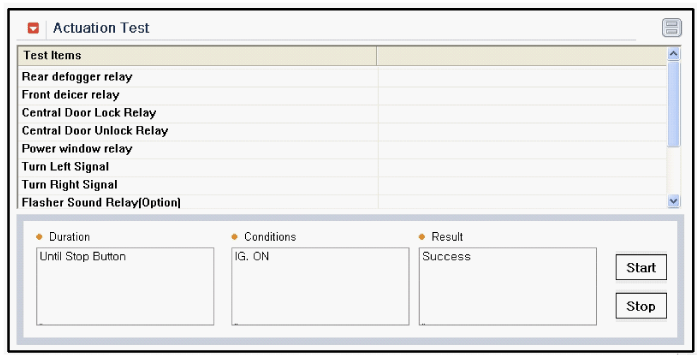

To check the input value of rear glass defogger switch in force mode, select option "Actuation Test of smart junction box".

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the heater and A/C controller after loosening screws.
(Refer to Heating, Ventilation, Air Conditioning - "Heater & A/C Control Unit (MANUAL)")
(Refer to Heating, Ventilation, Air Conditioning - "Heater & A/C Control Unit (DATC)")
Installation
1.
Install the heater and A/C controller to the center fascia panel.
2.
Connect the negative (-) battery terminal.
Rear Glass Defogger Printed Heater Repair procedures
Inspection    Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line. App ...
