Kia Cee'd: Light bulbs / Rear combination light bulb replacement

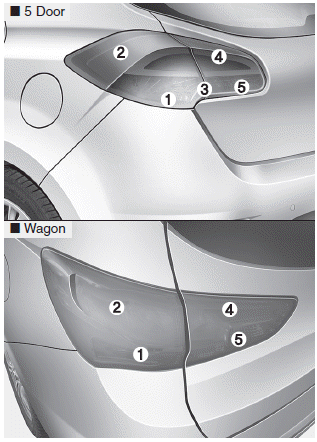

(1) Rear turn signal light
(2) Stop/tail light
(3) Back-up light
(for 3 Door and 5 Door)
(4) Tail light or stop/tail light
(for LED type)
(5) Rear fog light (for 5 Door), Rear fog
light (Driver’s side) or back-up light
(Passenger’s side), (for wagon)

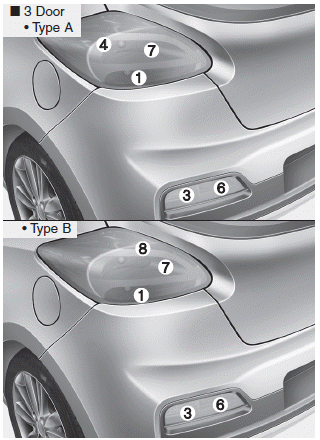

(6) Rear fog light (for 3 Door)
(7) Stop light (for 3 Door)
(8) Tail light (for 3 Door)
