Kia Cee'd: Blind Spot Detection system (BSD) / RCTA (Rear cross traffic alert)

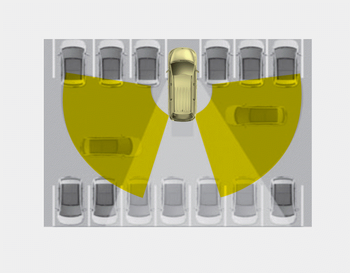

The Rear Cross Traffic Alert feature monitors approaching cross traffic from the left and right side of the vehicle when your vehicle is in reverse.

Warning message
• This warning message may appear when : - One or both of the sensors on the rear bumper is blocked by dirt or snow or a foreign object. - Driving in rural areas where the BSD sensor doe ...

Operating conditions
Select RCTA (Rear Cross Traffic Alert) in "User Settings" under "Driving Assist" on the instrument cluster. The system will turn on and stand by to be activated. Select RCTA again, to ...
