Kia Cee'd: Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

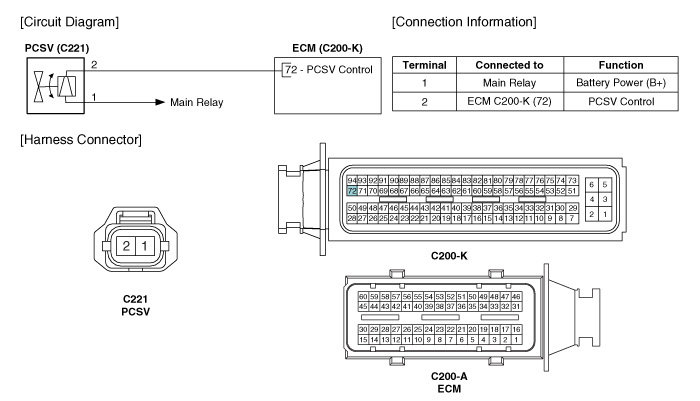

Circuit Diagram

Purge Control Solenoid Valve (PCSV) Specifications
Specification   Item Specification Coil Resistance (Ω) 22.0 ~ 26.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance betwe ...
