Kia Cee'd: Power Door Mirrors / Power Outside Mirror Switch Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Power Door Mirrors / Power Outside Mirror Switch Schematic diagrams

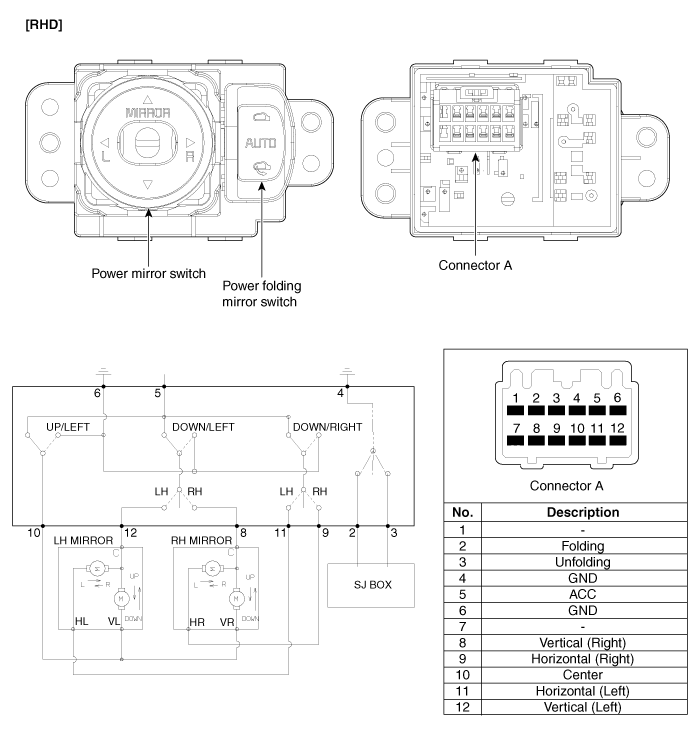

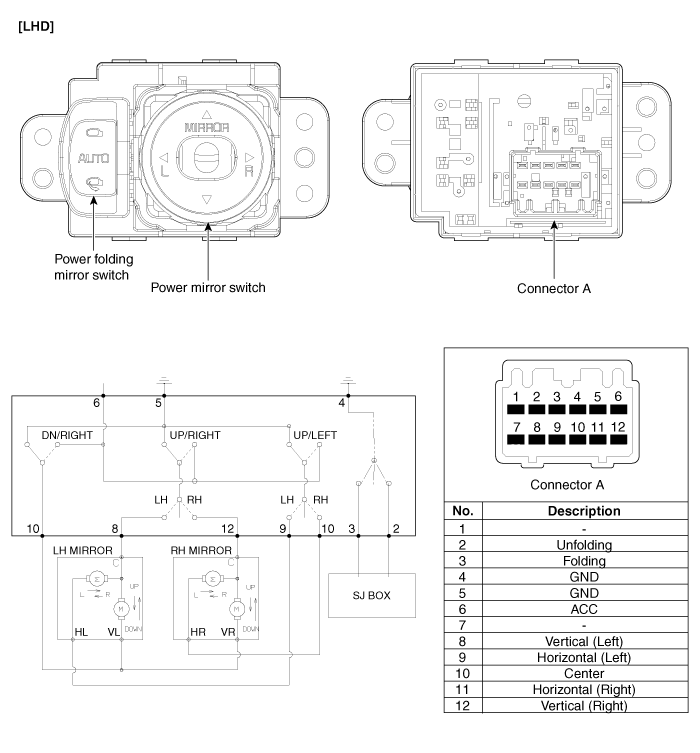

Circuit Diagram

Components and components location

Components 1. Power door mirror 2. Power door mirror switch 3. Power folding mirror switch ...

Power Outside Mirror Switch Repair procedures

Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the the crash pad garnish [LH] (A). (Refer to Body - &quo ...
