Kia Cee'd: Power Door Mirrors / Power Outside Mirror Switch Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Power Door Mirrors / Power Outside Mirror Switch Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

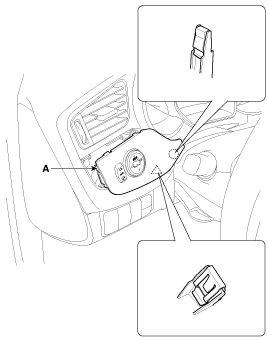

2.	Remove the the crash pad garnish [LH] (A). (Refer to Body - "Cluster Fascia Panel")

3.	Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch (LHD)] [Folding Mirror Switch (LHD)] [Power Mirror Switch (RHD)] [Folding Mirror Switch (RHD)]

Removal

1.	Disconnect the negative(-) battery terminal.

2.	Remove the the crash pad garnish [LH] (A). (Refer to Body - "Cluster Fascia Panel")

3.	Disconnect the power door mirror switch connector (A).

4.	Remove the power door mirror switch (A) after loosening the mounting screws.

Installation

1.	Install the power window switch and connector.

2.	Install the crash pad garnish [LH].

Power Outside Mirror Switch Schematic diagrams

Circuit Diagram ...

Power Door Mirror Actuator Repair procedures

Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door quadrant innen cover. 3. ...
