Kia Cee'd: Dual clutch transmission operation / Paddle shifter

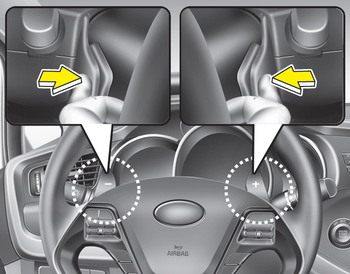

The paddle shifter is available when the shift lever is in the D (Drive) position or the sports mode.

With the shift lever in the D position

The paddle shifter will operate when the vehicle speed is more than 10km/h.

Pull the [+] or [-] paddle shifter once to shift up or down one gear and the system changes from automatic mode to manual mode.

When the vehicle speed is lower than 10km/h, if you depress the accelerator pedal for more than 5 seconds or if you shift the shift lever from D (Drive) to sports mode and shift it from sports mode to D (Drive) again, the system changes from manual mode to automatic mode.

With the shift lever in the sports mode

Pull the [+] or [-] paddle shifter once to shift up or down one gear.

✽ NOTICE

If you pull the [+] and [-] paddle shifters at the same time, you cannot shift the gear.

Dual clutch transmission operation
The dual clutch transmission has 7 (or 6) forward speeds and one reverse speed. The individual speeds are selected automatically in the D (Drive) position. WARNING To reduce the risk of seri ...

Shift lock system
For your safety, the Dual clutch transmission has a shift lock system which prevents shifting the transaxle from P (Park) or N (Neutral) into R (Reverse) unless the brake pedal is depressed. ...
