Kia Cee'd: Lighting System / Overhead Console Lamp Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Overhead Console Lamp Repair procedures

Inspection
1.

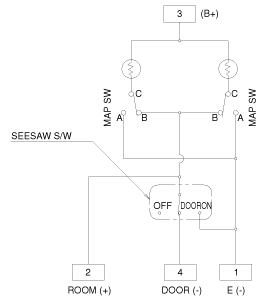

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
[Non-Sunroof Type]


No.
Description
1
Ground(-)
2
Battery(+)
3
Door(-)
4
Room(+)

[Panoramaroof Type]


No.
Description
1
Ground(-)
2
Room(+)
3
Battery(+)
4
Door(-)

Removal
1.
Disconnect the negative (-) battery terminal.
2.
If necessary to replace the bulb only, replace the bulb after opening the overhead console lens (A).
[Non-Sunroof Type]

[Panoramaroof Type]

3.
Loosen 2 screws holding the overhead console (A).

4.
Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.

Installation
1.
Install the overhead console lamp after connecting the panoramaroof switch connector and lamp connector.
2.
Install the lens after tightening 2 screws.
