Kia Cee'd: Manual heating and air conditioning / OFF mode

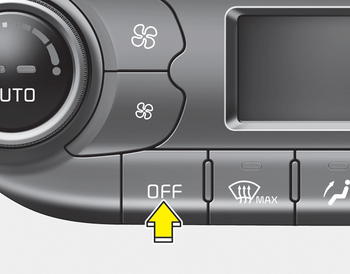

Press the OFF button to turn off the air climate control system. However, you can still operate the air intake buttons as long as the ignition switch is in the ON position.
Air conditioning
Press the A/C button to turn the air conditioning
system on (indicator light will
illuminate).
Press the button again to turn the air
conditioning system off. ...
