Kia Cee'd: Audio / Multimedia Jack Schematic diagrams

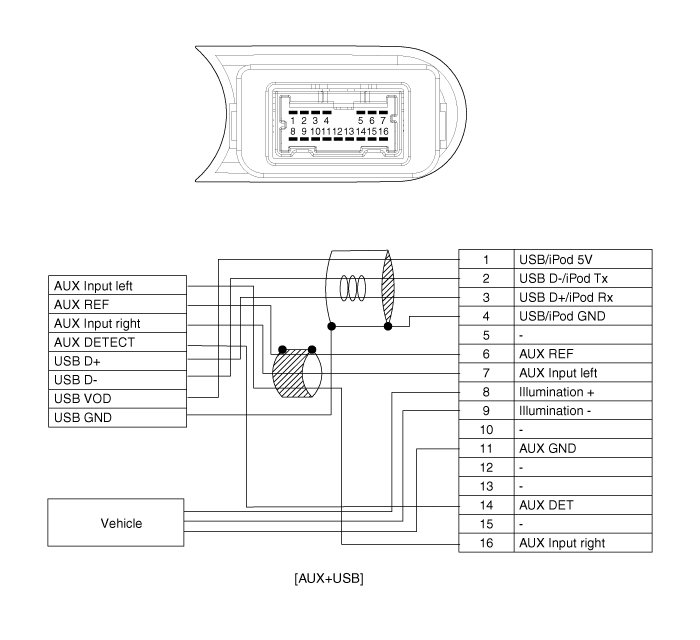

| Circuit Diagram |
|
No |
Terminal Description |
Condition |
Specified Condition |
|
1 |
USB /iPod power |
USB/iPod device is inserted |
4.9V ~ 5.1V |
|
2 |
USB D- |
USB device is inserted |
3.2V ~ 3.45 |
|
3 |
USB D+ |
USB device is inserted |
3.2V ~ 3.45 |
|
4 |
iPod detection line |
iPod device is inserted |
GND |
|
5 |
- |
|
|
|
6 |
AUX Reference Ground |
Always |
Below 1 ohm |
|
7 |
AUX Left Sound Signal |
External Auxiliary device is Audio playing(At time of Aux jack use) |
A waveform synchronized with sound is output |
|
8 |
Illumination (+) |
|
|
|
9 |
Illumination (-) |
|
|
|
10 |
- |
|
|
|
11 |
Multimedia jack ground |
|
GND |
|
12 |
- |
|
|
|
13 |
- |
|
|
|
14 |
AUX Signal Input Detect |
Auxiliary device is inserted |
0V(Low) → 5V(High) |
|
15 |
- |
|
- |
|
16 |
AUX Right Sound Signal |
External Auxiliary device is Audio playing(At time of Aux jack use) |
A waveform synchronized with sound is output |
