Kia Cee'd: Fuses / Multi fuse

If the multi fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel on the right side in the engine compartment.

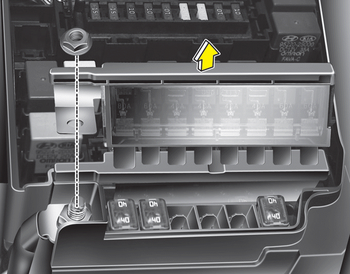

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

✽ NOTICE

If the multi fuse or main fuse is blown, we recommend that you consult an authorized Kia dealer.

Main fuse
Electrical equipments are not working even though inner panel and engine compartment fuses are not blown, or many of these are not working at the same time, it may has blown the main fuse( ...
