Kia Cee'd: Intake And Exhaust System / Muffler Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Intake And Exhaust System / Muffler Components and components location

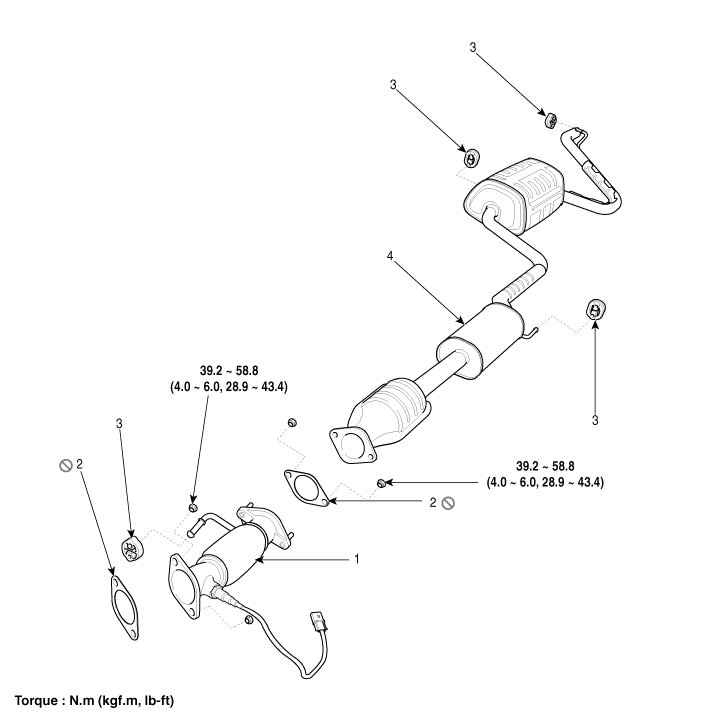

Components

1. Front muffler
2. Gasket

3. Hanger
4. Center & main muffler

Exhaust Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disc ...

Muffler Repair procedures

Removal and Installation [Front muffler] 1. Disconnect the rear oxygen sensor connector (A). 2. Remove the front muffler (A) ...
