Kia Cee'd: Brake System / Master Cylinder Components and components location

Kia Cee'd JD Service Manual / Brake System / Brake System / Master Cylinder Components and components location

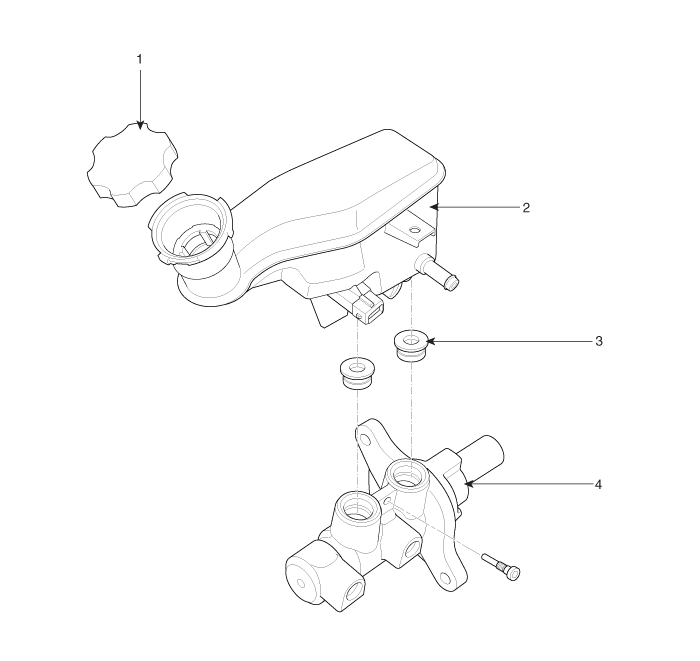

Components [LHD]


1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder

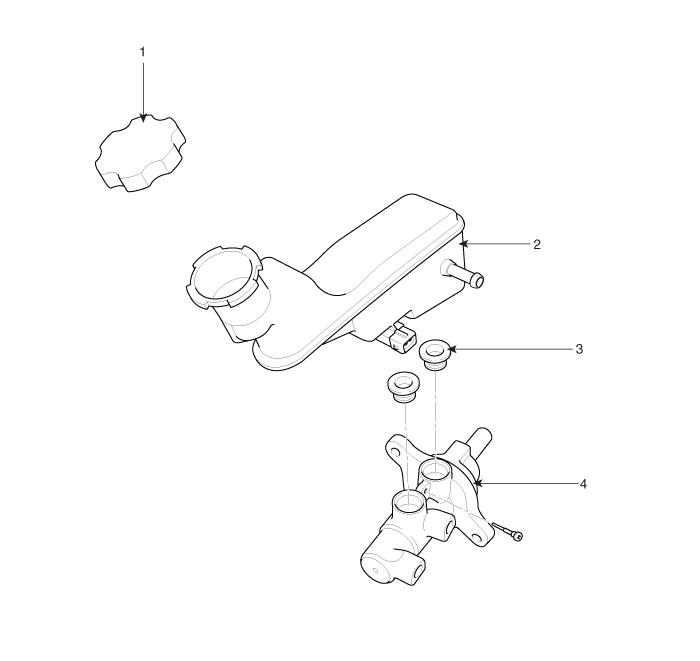

Components [RHD]


1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder
