Kia Cee'd: Instrument cluster (Super vision) / Manual transaxle shift indicator

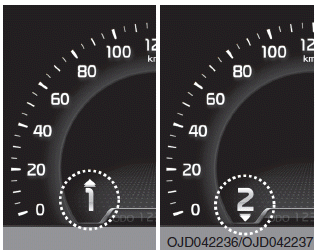

This indicator informs you which gear is desired while driving to save fuel. For example

: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th or 5th gear).

Engine coolant temperature gauge
■ Type A ■ Type B This gauge shows the temperature of the engine coolant when the ignition switch is ON. Do not continue driving with an overheated engine. If your vehicle overheats, ...

Automatic transaxle shift position indicator
The indicator displays which automatic transaxle shift lever is selected. ...
