Kia Cee'd: Instrument cluster (Normal vision) / Manual transaxle shift indicator

This indicator informs you which gear is desired while driving to save fuel.

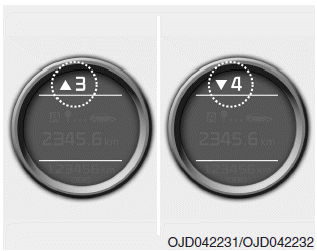

For example

: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th or 5th gear).

You can turn off the indicator. Refer to “User setting” in this chapter.
