Kia Cee'd: Manual Transaxle System / Manual Transaxle Components and components location

Kia Cee'd JD Service Manual / Manual Transaxle System / Manual Transaxle System / Manual Transaxle Components and components location

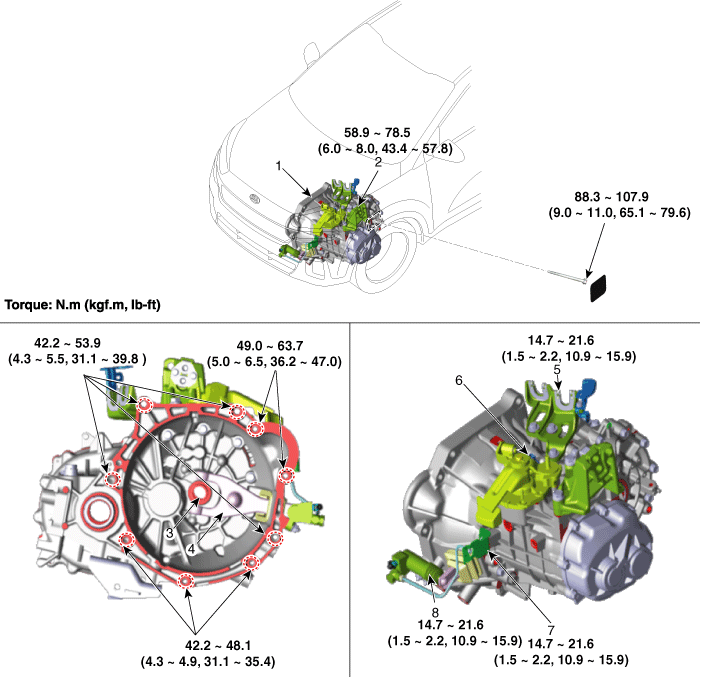

Components

1. Manual transaxle assembly
2. Manual transaxle support bracket
3. Clutch release bearing
4. Clutch release fork
5. Control cable bracket

6. Control shaft complete
7. Clutch tube bracket
8. Clutch release cylinder assembly

Manual Transaxle Oil Repair procedures

Inspection Manual Transaxle Oil level Check • Check intervals: 40000 miles / 4ye ...

Manual Transaxle Repair procedures

Removal 1. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") 2. Remove the battery ...
