Kia Cee'd: Interior light / Luggage room lamp

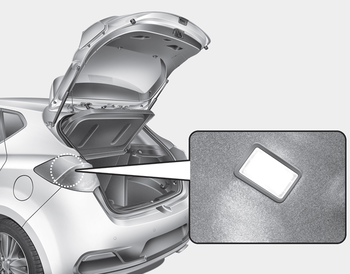

The luggage room lamp comes on when the tailgate is opened.

Vanity mirror lamp
Push the switch to turn the light on or off. : The lamp will turn on if this button is pressed. : The lamp will turn off if this button is pressed. CAUTION - Vanity mirror lam ...

Glove box lamp
The glove box lamp comes on when the glove box is opened. ...
