Kia Cee'd: Engine Control System / Knock Sensor (KS) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Knock Sensor (KS) Schematic diagrams

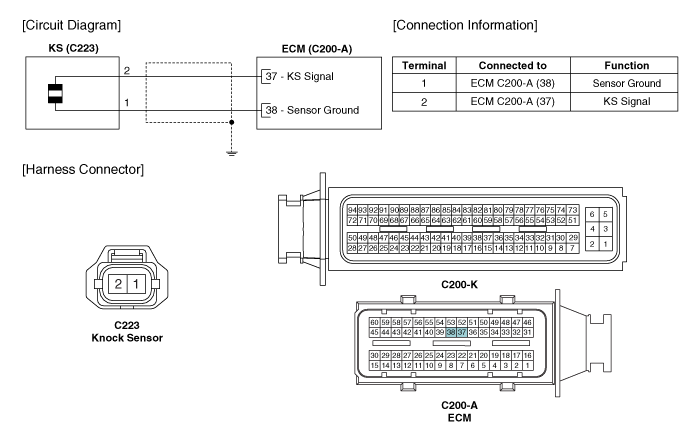

Circuit Diagram

Knock Sensor (KS) Specifications
Specification   Item Specification Capacitance (pF) 950 ~ 1,350 Resistance (MΩ) 4.87 ...

Knock Sensor (KS) Repair procedures
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold. (Re ...
