Kia Cee'd: ISG (Idle Stop and Go) system / ISG system malfunction
The system may not operate when:
The ISG related sensors or system error occurs.
The following will happen:
- The yellow AUTO STOP (
)
indicator
on the instrument cluster will stay
on after blinking for 5 seconds. - The light on the ISG OFF button will illuminate.
✽ NOTICE
- If the ISG OFF button light is not turned off by pressing the ISGOFFbutton again or if the ISG system continuously does not work correctly, we recommend that you contact an authorized Kia dealer as soon as possible.
- When the ISG OFF button light comes on, it may stop illuminating after driving your vehicle at approximately 80 km/h for a maximum of two hours and setting the fan speed control knob below the 2nd position. If the ISG OFF button light continues to be illuminated in spite of the procedure, we recommend that you contact an authorized Kia dealer as soon as possible.
WARNING
When the engine is in Idle Stop mode, it's possible to restart the engine without the driver taking any action.
Before leaving the car or doing anything in the engine room area, stop the engine by turning the ignition switch to the LOCK/OFF position or removing the ignition key.

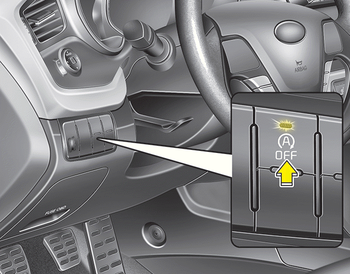

ISG system deactivation
If you wish to deactivate the ISG system,
press the ISG OFF button. The
light on the ISG OFF button will illuminate
and a message “Auto Stop OFF”
will appear on the LCD display.
...
Manual Transaxle
...
