Kia Cee'd: Engine Control System / ISG (Idle Stop & Go) Components and components location

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / ISG (Idle Stop & Go) Components and components location

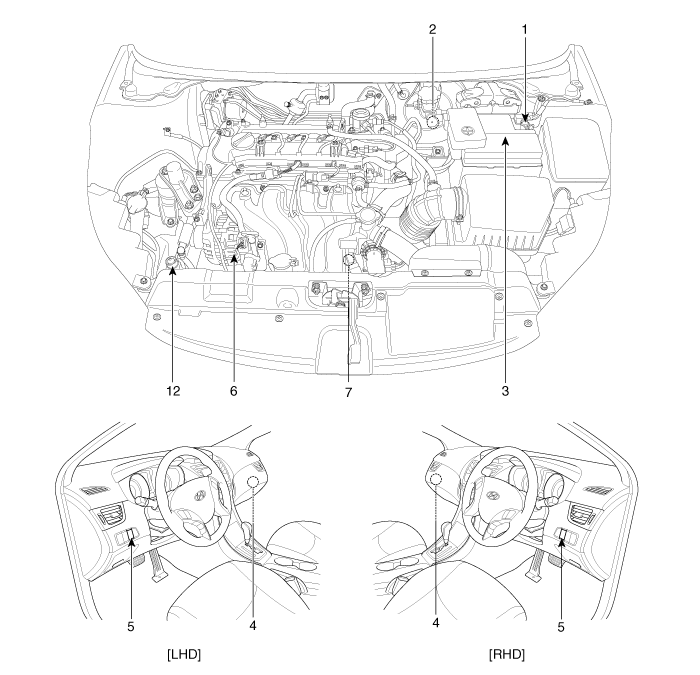

Components Location


1 . Battery sensor
2 . Brake Booster Vacuum Pressure Sensor (BBVPS)
3 . AGM battery
4 . DC DC converter
5 . ISG OFF switch
6. Alternator
7 . Starter
8. Neutral switch
9. Clutch switch
10. Door switch
11. Seat belt switch
12. Hood switch


1 . Battery sensor
3 . AGM battery
2 . Brake Booster Vacuum Pressure Sensor (BBVPS)

4 . DC DC converter
5 . ISG OFF switch

6. Alternator
7 . Starter

8. Neutral switch
9. Clutch switch

10. Door switch
11. Seat belt switch

12. Hood switch
