Kia Cee'd: Intake And Exhaust System / Intake Manifold Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Intake And Exhaust System / Intake Manifold Components and components location

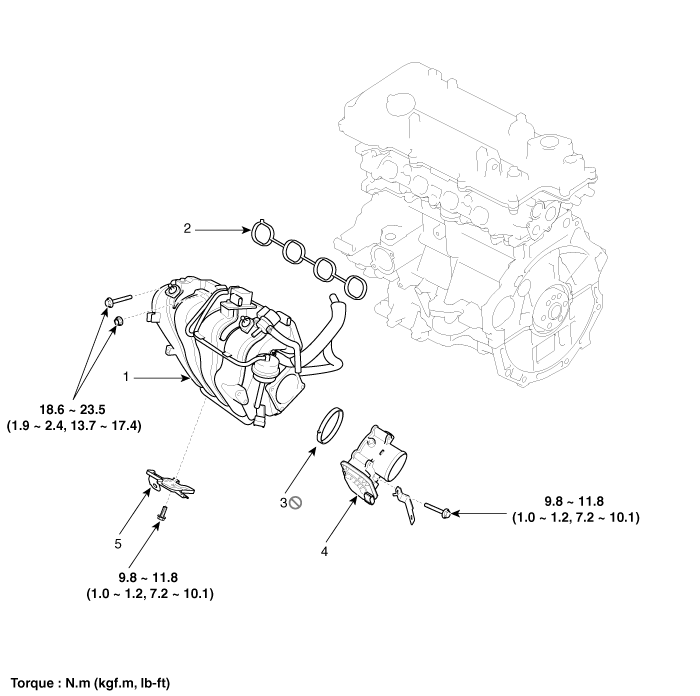

Components


1. Intake manifold assembly
2. Intake manifold gasket
3. Electronic throttle body gasket
4. Electronic throttle body
5. Bracket
