Kia Cee'd: Instrument cluster (Super vision) / Instrument panel illumination

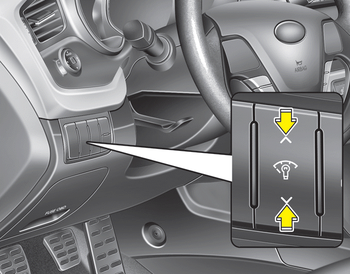

The instrument panel illumination intensity can be adjusted as follows:
- Ignition switch in the ON position
- Pressing the upper or lower part of the switch
The illumination intensity is shown on the instrument cluster LCD display.
Instrument cluster (Super vision)
■ Type A
1. Tachometer
2. Speedometer
3. Fuel gauge
4.Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display
■ Type B (for T-GDI engine) • Analog Mode
...
Gauges
...
Other information:
Kia Cee'd JD Owners Manual: Applying the parking brake
To apply the EPB (electric parking
brake):
Pull up the EPB switch.
Make sure the warning light comes on.
✽ NOTICE
On a steep incline or when pulling a
trailer if the vehicle does not stand still,
do as follows:
1. Apply the EPB.
2. Pull up the EPB switch for more than
3 seconds.
...
Kia Cee'd JD Service Manual: Schematic diagrams
Schematic Diagram
Canister
Canister is filled with charcoal and absorbs evaporated vapor in fuel tank.
The gathered fuel vapor in canister is drawn into the intake manifold by the
ECM/PCM when appropriate conditions are set.
Purge Control Solenoid Valve (PCSV)
...
