Kia Cee'd: Indicators and Gauges / Instrument Cluster Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Indicators and Gauges / Instrument Cluster Schematic diagrams

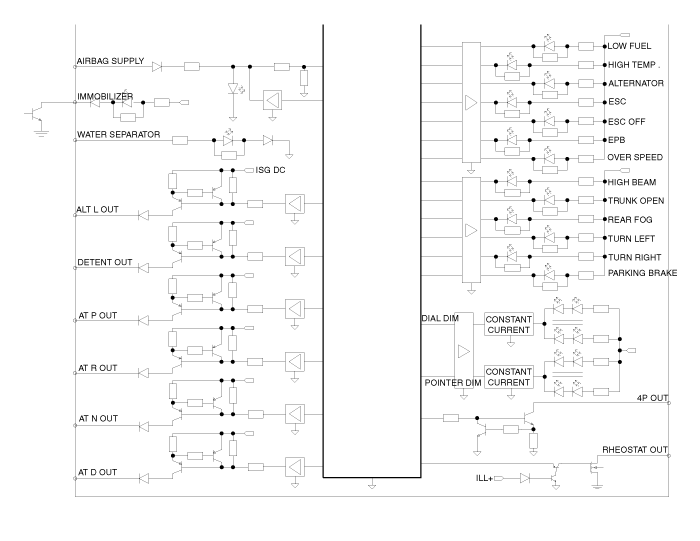

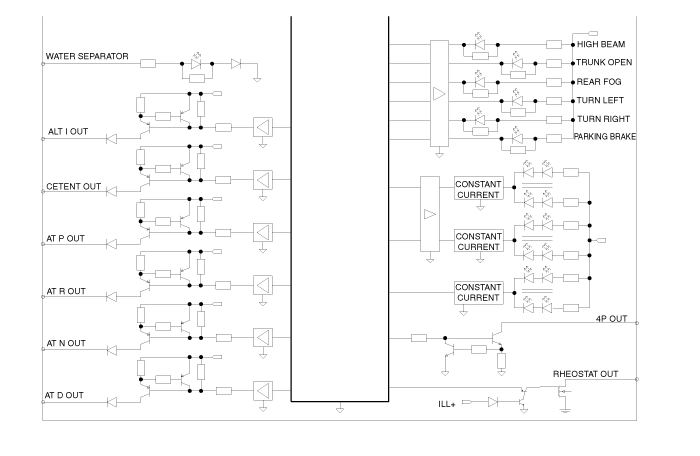

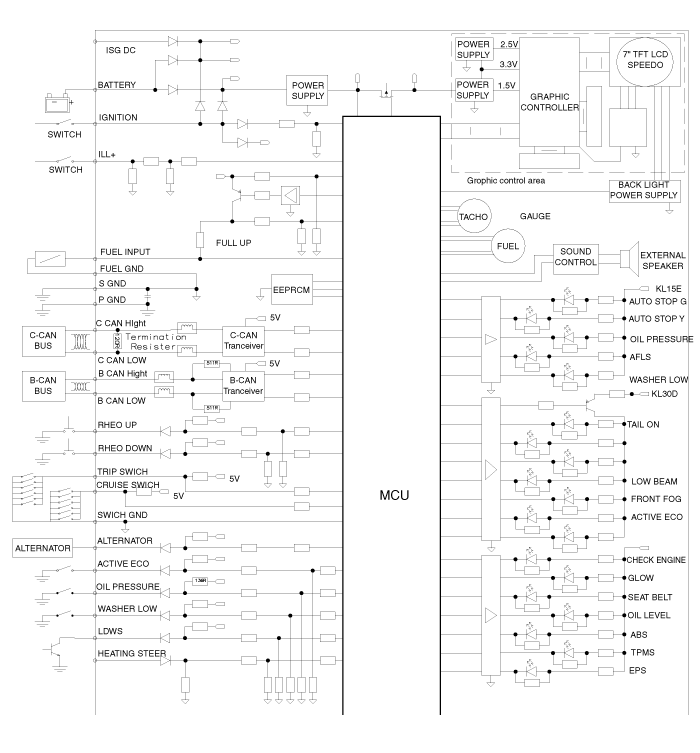

Circuit Diagram
[Standard]

[Supervision]

Instrument Cluster Components and components location
Components ...

Instrument Cluster Repair procedures
Inspection Speedometer 1. Adjust the pressure of the tires to the specified level. 2. Drive the vehicle onto a speedometer tester. U ...
