Kia Cee'd: Fuse/relay panel description / Inner fuse panel

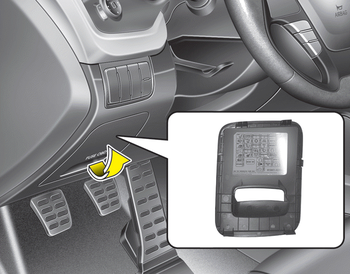

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.

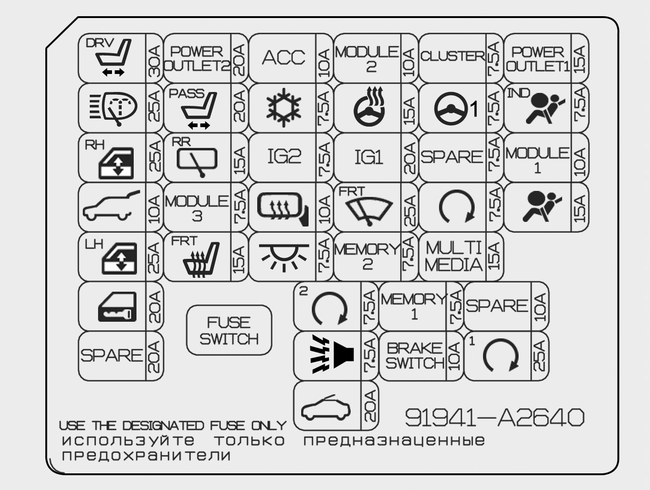

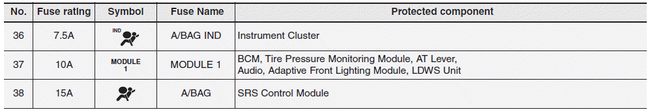

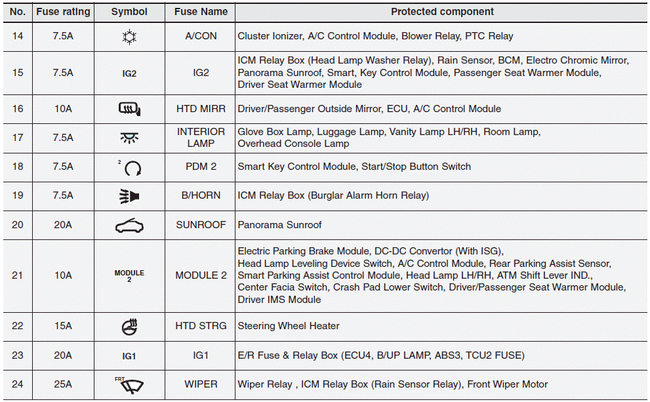

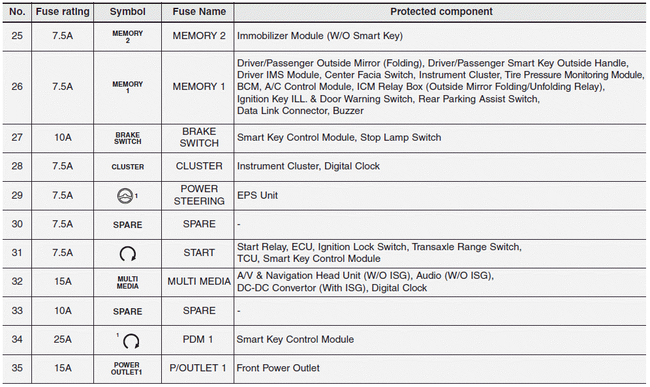

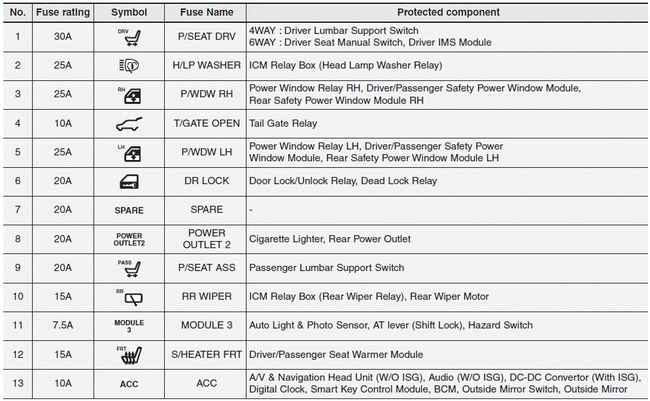

Instrument panel (Driver’s side fuse panel)
Engine compartment fuse panel
(for gasoline engine MPI, GDI)
✽ NOTICE
The actual fuse/relay panel label may
differ from equipped items.
...
