Kia Cee'd: Dual Clutch Transmission Control System / Inhibitor Switch Schematic diagrams

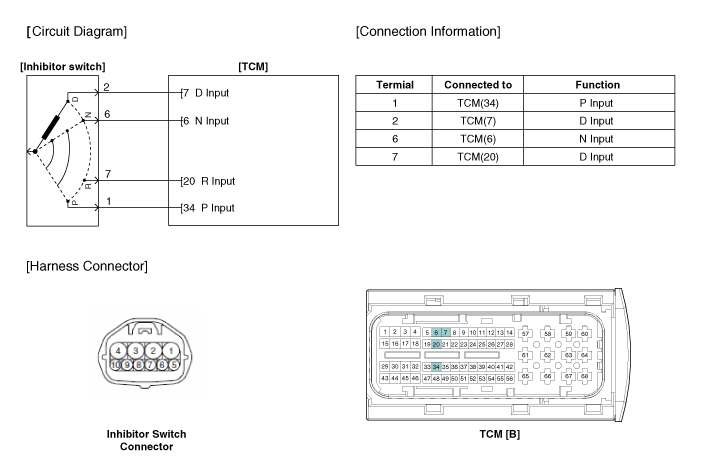

Schematic Diagrams

Inhibitor Switch Specifications
Specification ▷ Type: Single signal output type ▷ Specifications   Item Specifications Output type Combined sign ...

Inhibitor Switch Repair procedures
Inspection 1. Inspect for loosened connectors, faulty connections, bends, corrosion, contamination, deformation, or damage. 2. Dis ...
