Kia Cee'd: IMS (Integrated Memory) / IMS Control Switch Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Control Switch Repair procedures

Inspection

1.	Remove the IMS control switch connector (A).

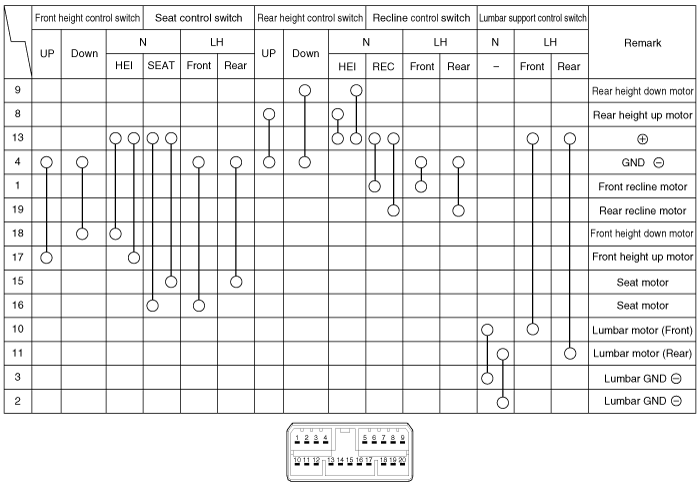

2.	With the IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch. Driver Power Seat Control Switch (For IMS)

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat shield outer cover (A). (Refer to Body - "Front Seat Shield Outer Cover")

3.	Disconnect the IMS control switch connector (A).

4.	Remove the IMS control switch (A) after loosening the mounting screws.

Installation

–	Make sure that the IMS control switch connectors and related connectors are plugged in properly.

–	Check the IMS control switch operates normally.

1.	Connect the connectors and reassemble the IMS control switch.

2.	Reassemble the seat side cover.

IMS Control Switch Schematic diagrams

Circuit diagram ...
