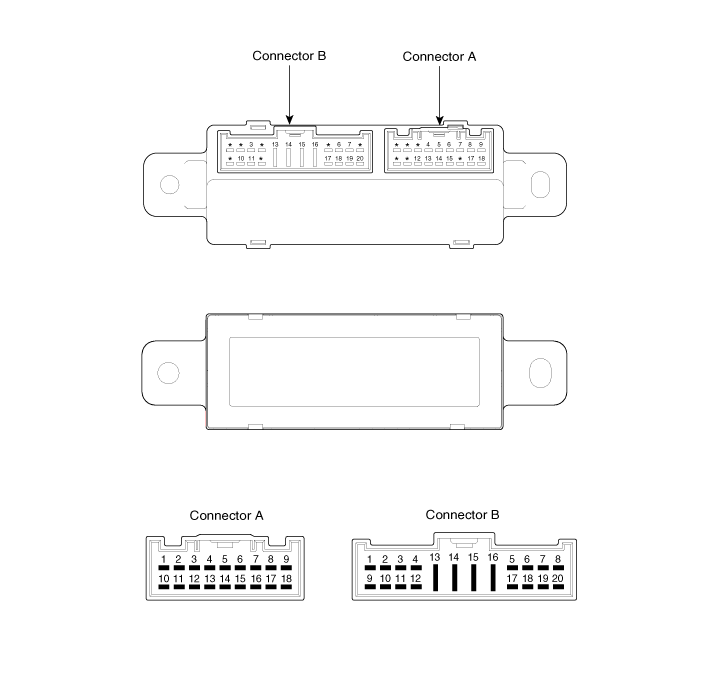

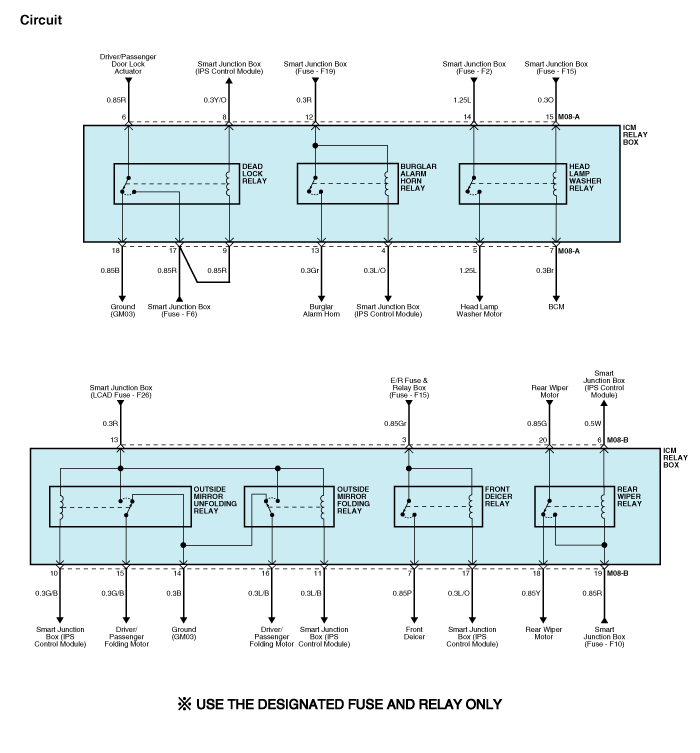

Kia Cee'd: Fuses and Relays / ICM (Integrated Circuit Module) Relay Box Components and components location

Relay Box (Passenger Compartment) Repair procedures

Fuse Inspection 1. Be sure there is no play in the fuse holders, and that the fuses are held securely. 2. Be sure the fuse capaciti ...

ICM (Integrated Circuit Module) Relay Box Description and operation

Description The ICM is united many kinds of relays and installed inside the driver crash pad. ...
