Kia Cee'd: Manual climate control system / Heating and air conditioning

1. Start the engine.

2. Set the mode to the desired position. To improve the effectiveness of heating and cooling:
- Heating:
- Cooling:

3. Set the temperature control to the desired position.

4. Set the air intake control to the outside (fresh) air or recirculated position.

5. Set the fan speed control to the desired speed.

6. If air conditioning is desired, turn the air conditioning system on.

Manual climate control system
1. Fan speed control knob 2. Air conditioning button 3. Rear window defroster button 4. Mode selection knob 5. Air intake control button 6. Temperature control knob CAUTION Operating the blow ...

Mode selection

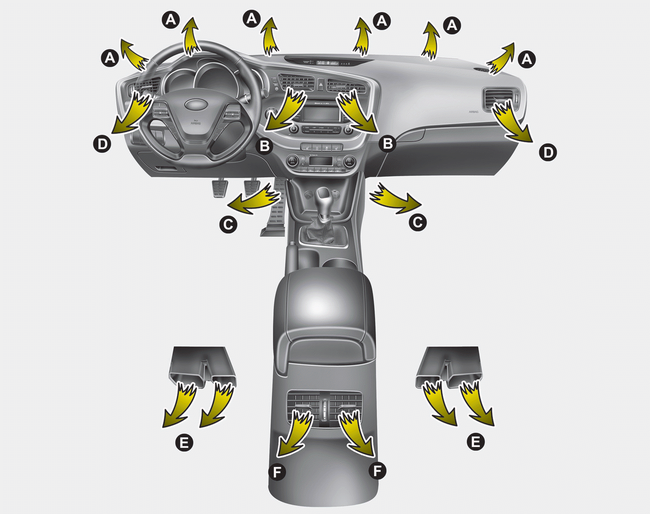

The mode selection knob controls the direction of the air flow through the ventilation system. Air can be directed to the floor, dashboard outlets, or windshield. Six symbols are used to re ...
