Kia Cee'd: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

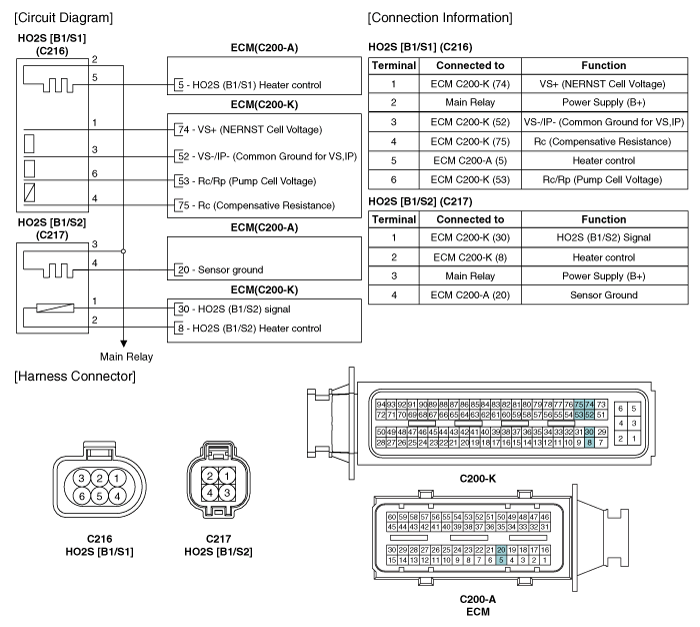

Circuit Diagram
