Kia Cee'd: Lighting System / Hazard Lamp Switch Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch Repair procedures

Inspection

1.	It will be able to diagnose defects of hazard switch with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

2.	Select model and "BCM".

3.	Select the "SJB" to check.

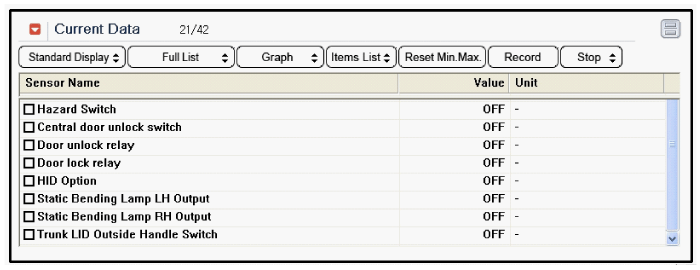

4.	Select "Current data", if you will check current data of hazard switch. It provides input/output status of SJB.

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center airvent duct. (Refer to Body - "Cluster Fascia Panel")

3.	Remove the hazard switch (A) after disengaging the clip from the center airvent duct.

Installation

1.	Install the hazard switch to the center airvent duct.

2.	Install the center airvent duct.
