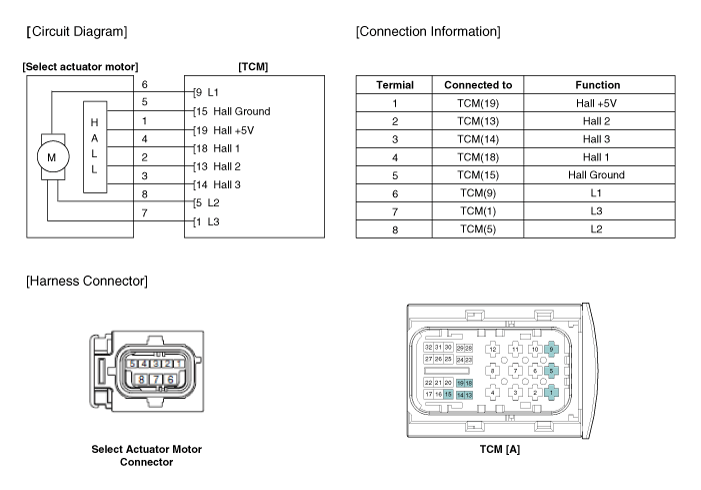

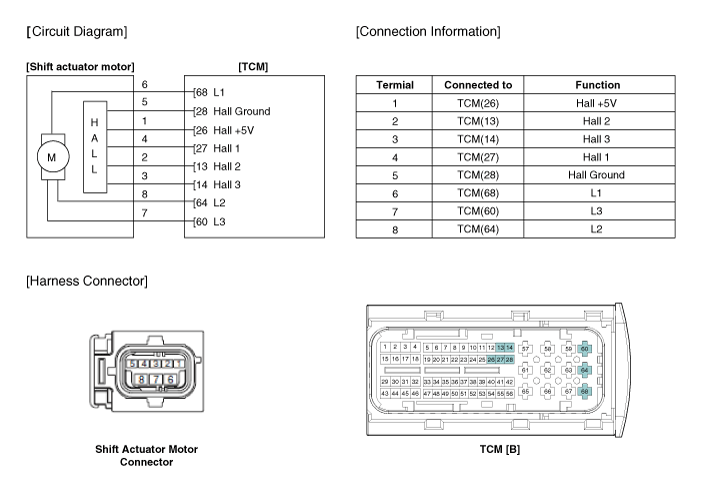

Kia Cee'd: Dual Clutch Transmission Control System / Gear Actuator Motor Schematic diagrams

Schematic Diagrams
