Kia Cee'd: Engine Control System / Fuel Pressure Control Valve Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Fuel Pressure Control Valve Schematic diagrams

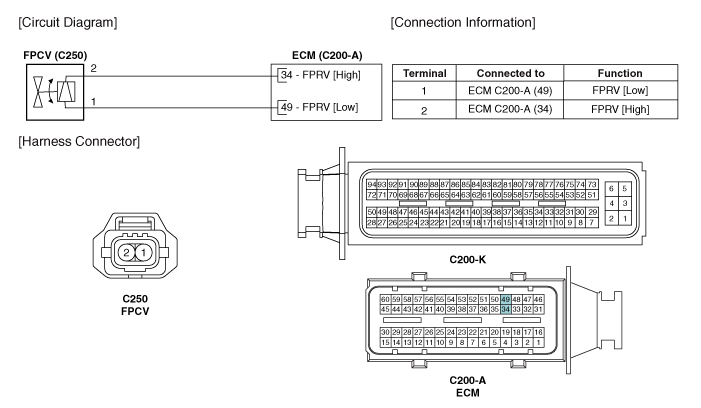

Circuit Diagram

Fuel Pressure Control Valve Troubleshooting
Signal Waveform ...

Fuel Pressure Control Valve Repair procedures
Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator ...
