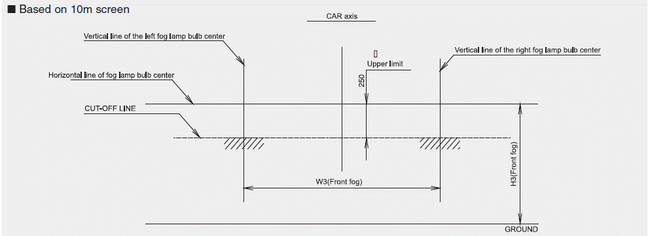

■ Based on 10m screen

1. Turn the front fog lamp on without the driver aboard.

2. The cut-off line should be projected in the allowable range (shaded region).

Head lamp low beam (RHD)

1. Turn the low beam on without driver aboard. 2. The cut-off line should be projected in the cut-off line shown in the picture. 3. When aiming the low beam, vertical aiming should be adjusted a ...

Side repeater light bulb replacement

If the light bulb does not operate, we recommend that the system be checked by an authorized Kia dealer. ...
