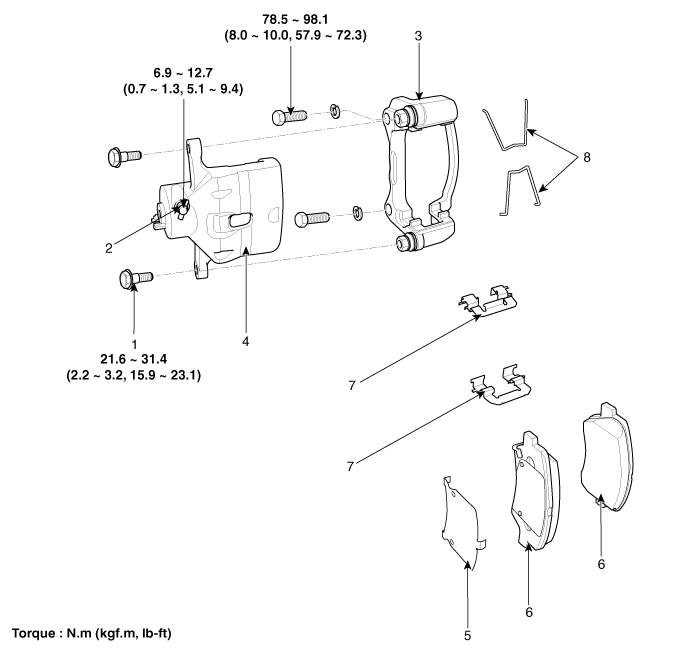

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body

5. Inner pad shim
6. Brake pad
7. Pad retainer
8. Return spring

Brake Pedal Repair procedures

Removal [LHD] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. ...

Front Disc Brake Repair procedures

Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) ...
