Kia Cee'd: Outside rearview mirror / Folding the outside rearview mirror
Manual type

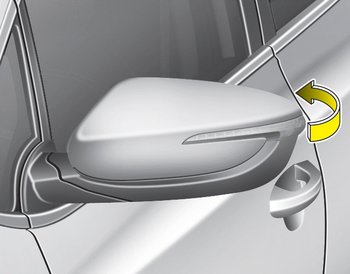

To fold outside rearview mirror, grasp the housing of mirror and then fold it toward the rear of the vehicle.
Electric type

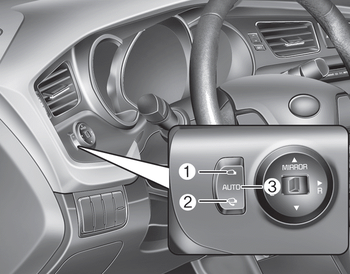

The outside rearview mirror can be folded or unfolded by pressing the switch as below.
Up (1) : The mirror will unfold.
Down (2) : The mirror will fold. Center (AUTO, 3) :
The mirror will fold or unfold automatically as follows:
- Without smart key system
- The mirror will fold or unfold when the door is locked or unlocked by the transmitter. - With smart key system
- The mirror will fold or unfold when the door is locked or unlocked by the smart key.
- The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.
- The mirror will unfold when you approach the vehicle (all doors closed and locked) with a smart key in possession.
CAUTION
The electric type outside rearview mirror operates even though the ignition switch is in the OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the engine is not running.
CAUTION
In case it is an electric type outside rearview mirror, don’t fold it by hand. It could cause motor failure.
