Kia Cee'd: Steering wheel / Flex Steering Schematic diagrams

Kia Cee'd JD Service Manual / Steering System / Steering wheel / Flex Steering Schematic diagrams

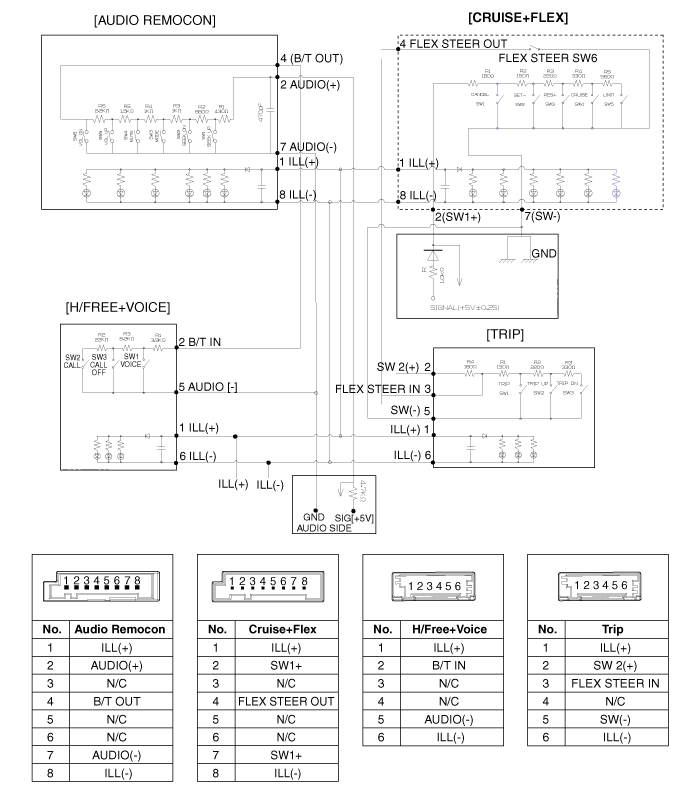

Circuit Diagram

Flex Steering Description and operation
Instruction Flex Steering is system to choose the three modes power steering depending on driver preference or driving conditions.    ...

Flex Steering Repair procedures
Inspection 1. Check the audio remote control switch (A) for resistance between terminals in each switch position.   Switch ...
