Kia Cee'd: Intake And Exhaust System / Exhaust Manifold Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold Components and components location

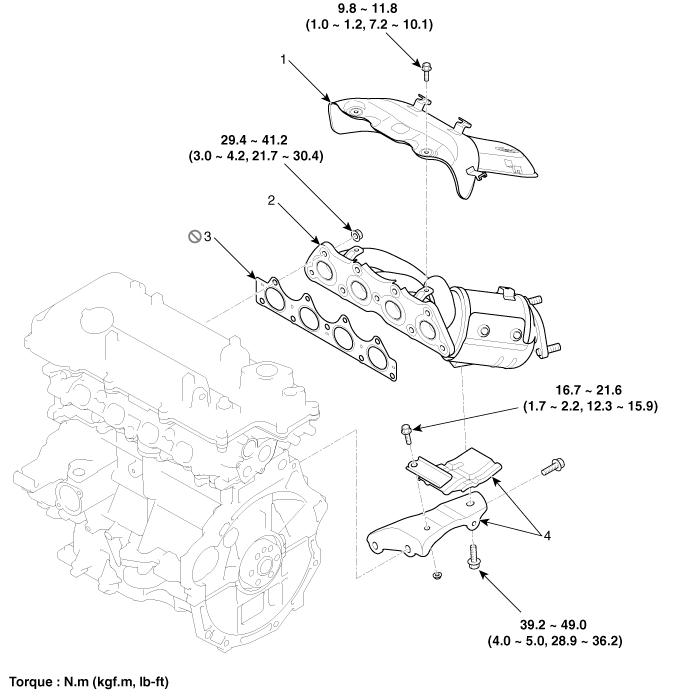

Components


1. Heat protector
2. Exhaust manifold
3. Gasket
4. Exhaust manifold stay

Intake Manifold Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remo ...

Exhaust Manifold Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disc ...
