Kia Cee'd: ESP(Electronic Stability Program) System / ESP Control Module Components and components location

Kia Cee'd JD Service Manual / Brake System / ESP(Electronic Stability Program) System / ESP Control Module Components and components location

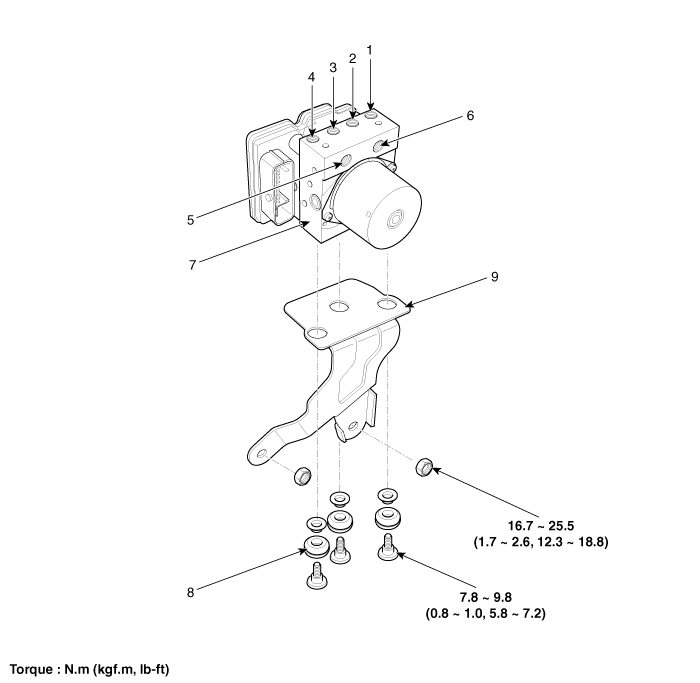

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2

6. MC1
7. ESP control module(HECU)
8. Damper
9. Bracket

Troubleshooting

Failure Diagnosis 1. In principle, ESP and TCS controls are prohibited in case of ABS failure. 2. When ESP or TCS fails, only the fai ...

ESP Control Module Repair procedures

Removal [LHD] 1. Turn the ignition switch OFF. 2. Pull up the lock of the HECU connector (A) , then disconnect the connector. ...
