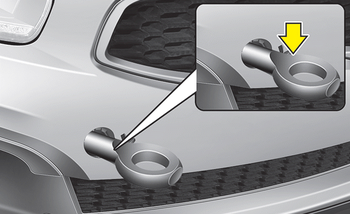

■ Front

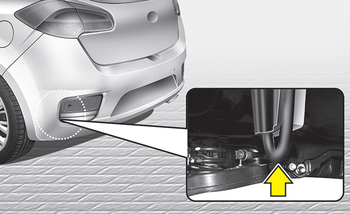

■ Rear (3 Door and 5 Door)

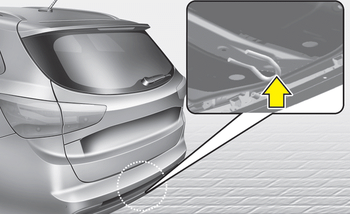

■ Rear (wagon)
If towing is necessary, we recommend you to have it done by an authorized Kia dealer or a commercial tow truck service.

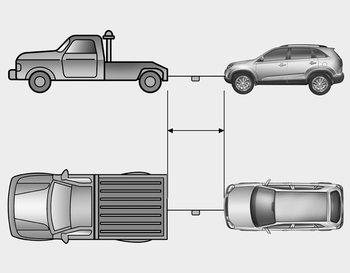

If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook under the front (or rear) of the vehicle. Use extreme caution when towing the vehicle. A driver must be in the vehicle to steer it and operate the brakes. Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speed. Also, the wheels, axles, power train, steering and brakes must all be in good condition.
CAUTION
WARNING
Use extreme caution when towing the vehicle.
Kia Cee'd JD Service Manual: Accelerator Position Sensor (APS) Specifications
Specification
Accelerator
Position
Output Voltage (V) [Vref=5V]
APS1
APS2
C.T
0.7 ~ 0.8
0.29 ~ 0.46
W.O.T
3.85 ~ 4.35
1.93 ~ 2.18
...
