Description
Introduction of quick brake warning system (ESS)

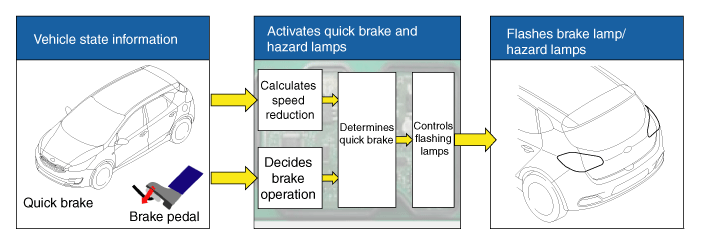

In case of sudden braking by the driver, the brake lamp and/or turn signal flash to warn the vehicle behind.

1.
Basic function (Blinking the brake lamp/emergency lamp)
Operation condition: In case of quick brake or operation of ABS above in a certain speed
Releasing condition: In case of stopping the quick brake or releasing the ABS operation
2.
Additional function (Blinking the turn signal)
Operation condition: In case of quick brake in low speed
Releasing condition: Releasing at the start of driving

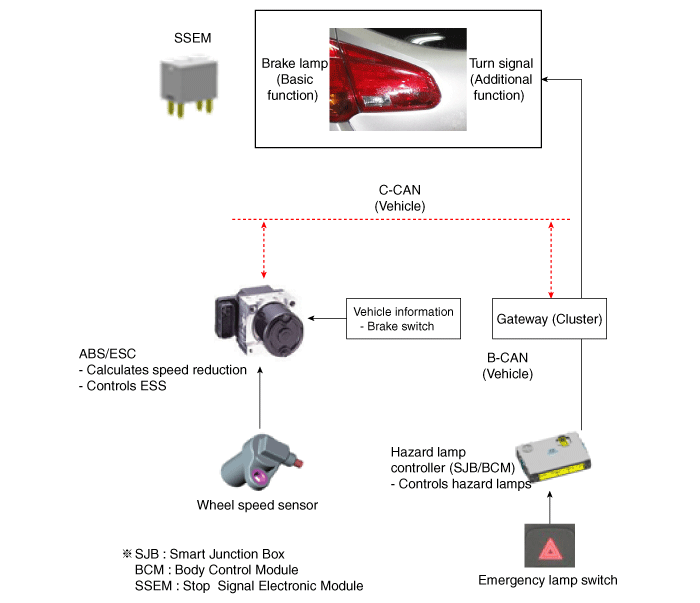

System configuration

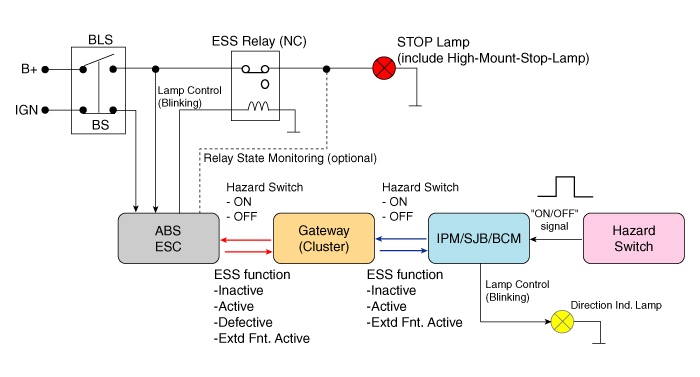

ESS Circuit diagram
