Kia Cee'd: Parking Brake System / Electronic Parking Brake (EPB) Schematic diagrams

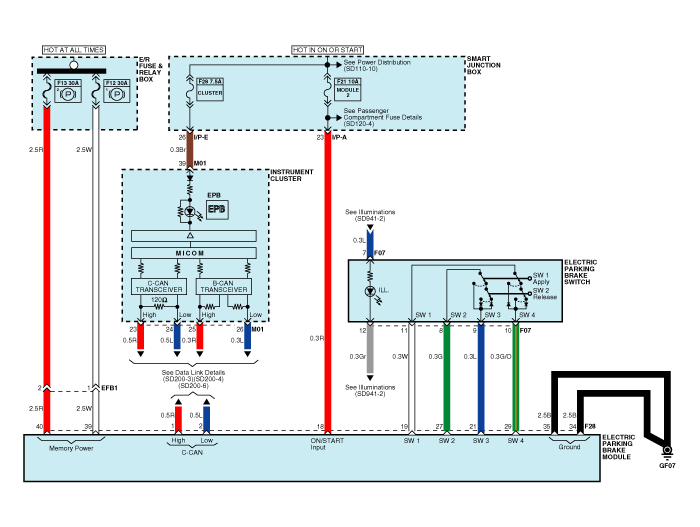

| EPB Circuit Diagram (1) |

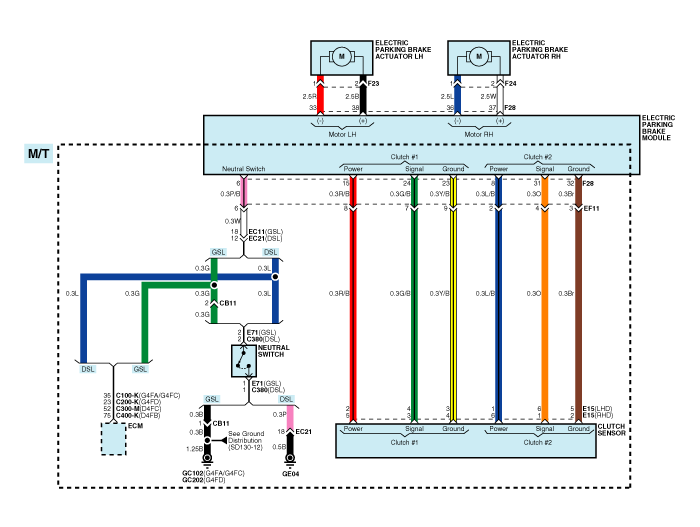

| EPB Circuit Diagram (2) |

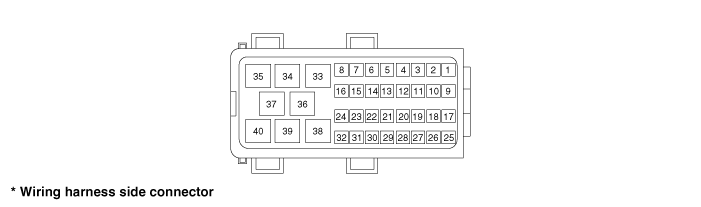

| EPB connector input/output |
|
Pin No. |
Function |
Pin No. |
Function |
|
1 |
CAN_High |
21 |
EPB switch 3 |
|
2 |
CAN_Low |
22 |
- |
|
3 |
- |
23 |
Clutch ground 1 (MT only) |
|
4 |
- |
24 |
Output signal 1 (MT only) |
|
5 |
- |
25 |
- |
|
6 |
Neutral switch (MT only) |
26 |
- |
|
7 |
- |
27 |
EPB switch 2 |
|
8 |
Clutch power 2 |
28 |
- |
|
9 |
- |
29 |
EPB switch 4 |
|
10 |
- |
30 |
- |
|
11 |
- |
31 |
Output signal 2 (MT only) |
|
12 |
- |
32 |
Clutch ground 2 (MT only) |
|
13 |
- |
33 |
Rear left caliper motor - |
|
14 |
- |
34 |
Ground |
|
15 |
Clutch power 1 (MT only) |
35 |
Ground |
|
16 |
- |
36 |
Rear right caliper motor - |
|
17 |
- |
37 |
Rear right caliper motor + |
|
18 |
Ignition 1 |
38 |
Rear left caliper motor + |
|
19 |
EPB switch 1 |
39 |
Rear right motor power |
|
20 |
- |
40 |
Rear left motor power |
